Konecranes lift trucks reach stacker intermodal models

Our models


Model Capacity Wheelbase
SMV 4224 CC5 42-24-10t 6,400 mm
SMV 4628 CC5 46-28-14t 6,400 mm
SMV 4632 CC5 46-32-17t 6,400 mm
SMV 4632 CCX5*** 46-34-21t 6,400 mm

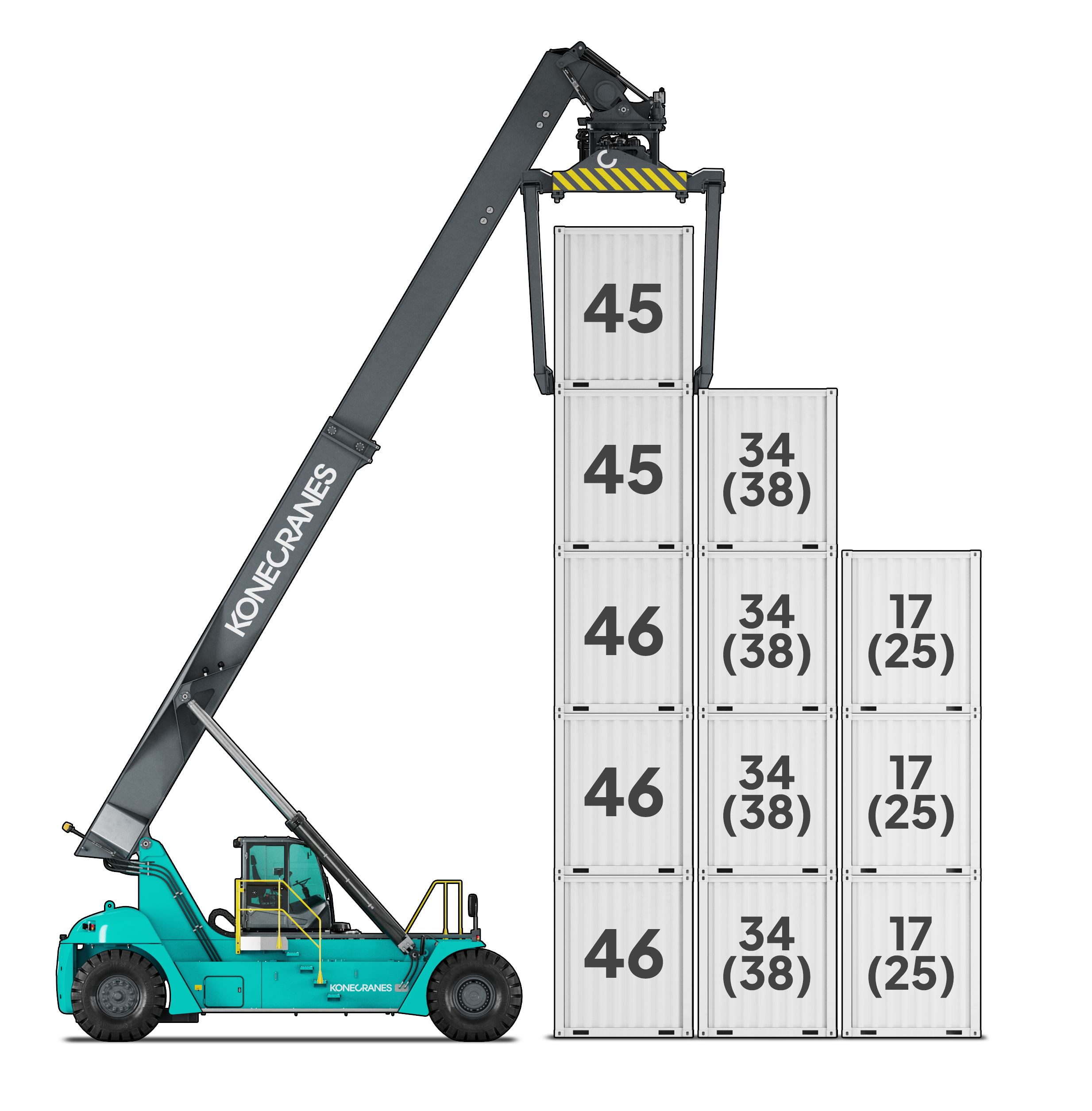

SMV 4634 CC5 46-34-17t 6,400 mm
SMV 4634 CCX5*** 46-38-25t 6,400 mm
Model Capacity Wheelbase
SMV 4638 CC5 46-38-22t 7,250 mm
SMV 4638 CCX5 46-41-29t 7,250 mm
SMV 4639 CCX4 46-41-34.5t 7,500 mm
SMV 4639 CC5 46-39-24t 7,500 mm
SMV 4639 CCX5*** 46-41-33t 7,500 mm

Model Capacity Wheelbase

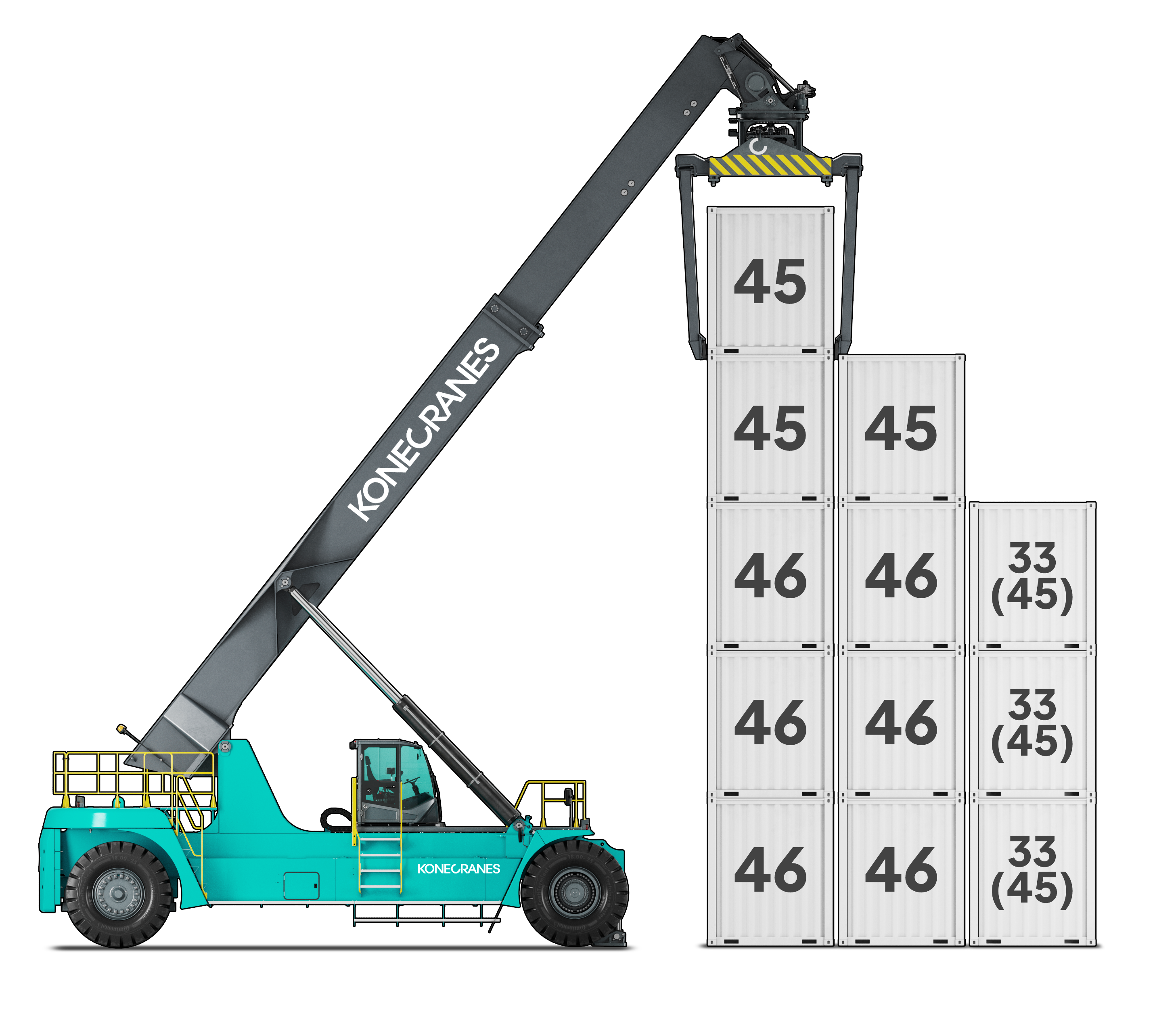

SMV 4646 CC5 46-46-34t 8,000 mm
SMV 4646 CCX5*** 46-46-45t 8,000 mm

*** CCX= Capacity with support jacks engaged. Other models upon request

Flow Drive configuration not applicable for models with 8,000 mm wheelbase

Ways to reduce your carbon emissions

hvo100
hvo100

Running on HVO100

As a first step in your decarbonization journey, all our latest Generation C Konecranes lift trucks can run on HVO100, a fossil-free chemical copy of regular diesel, that can reduce fossil-based CO2 emissions by up to 90% already.
Discover more
Liftace RS_Flow drive_image
Liftace RS_Flow drive_image

Improved productivity with Flow Drive

Konecranes Flow Drive reduces your fuel consumption by up to 25% with increased active operating time and always full performance. When combined with HVO100 fossil-free fuel, it lowers your CO2 emissions by 90%, in addition to the fuel savings.
Discover more
We have the attachment_intermodal spreader_image
We have the attachment_intermodal spreader_image

Special handling needs

We have the right attachment.

You’ll find your lifting solution in our complete range of attachments for intermodal handling reach stackers, to fulfill your daily handling needs.







Contact us to get your offer
