Konecranes lift trucks reach stacker container handling models

Konecranes lift trucks reach stackers is a full-range family that offers a broad range of options in safety, ergonomics and technology, as well as special customizations to fit exact needs.

We offer a very wide range of Konecranes container reach stackers for empty and laden container stacking. Below the list of our main models. Please contact your nearest sales representative for more information and technical specifications.

Our models

Model Capacity Wheelbase
SMV 108 TC6 10-8-5 t 5,000 mm

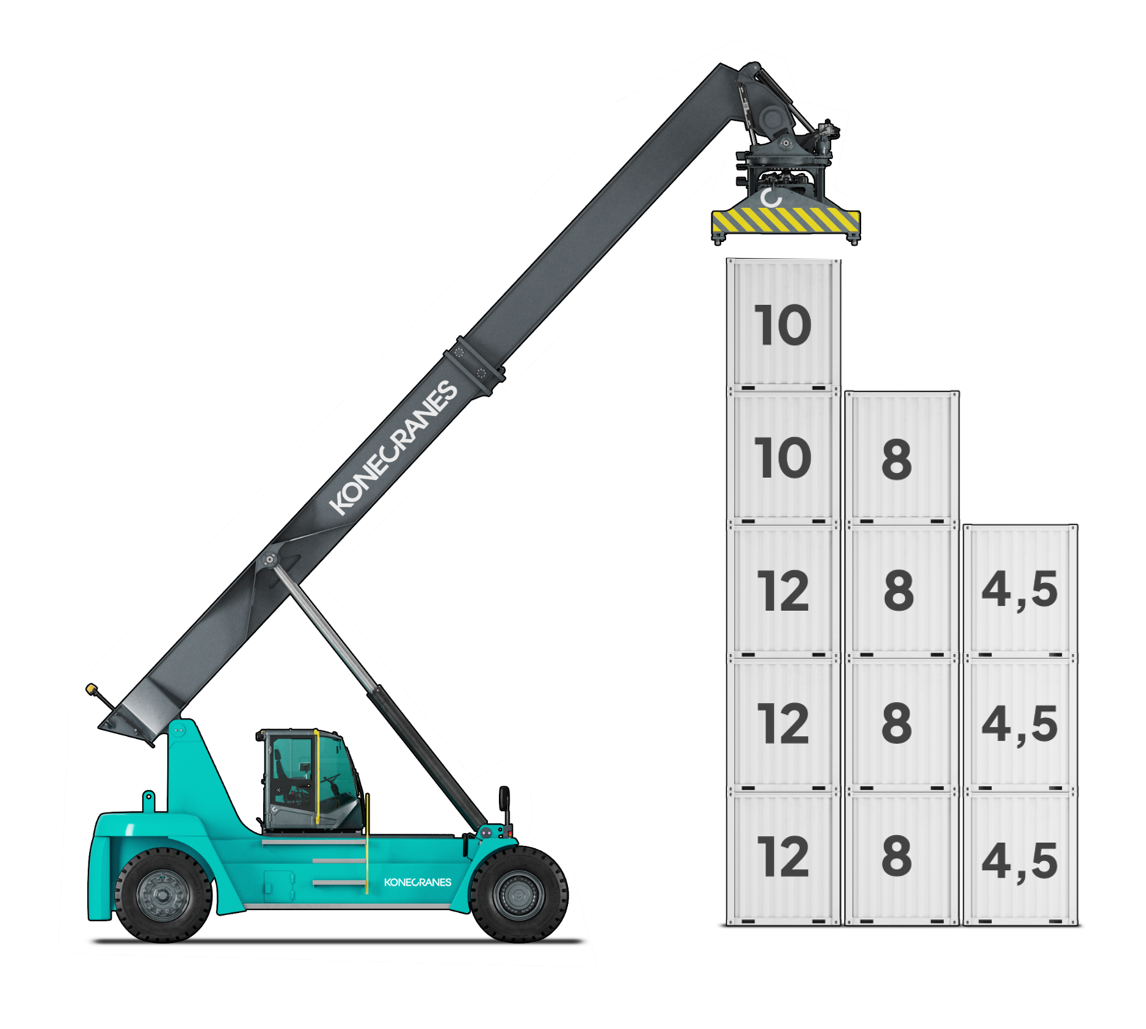

SMV 128 TC6 12-8-4.5 t 5,000 mm

Model name Capacity Wheelbase

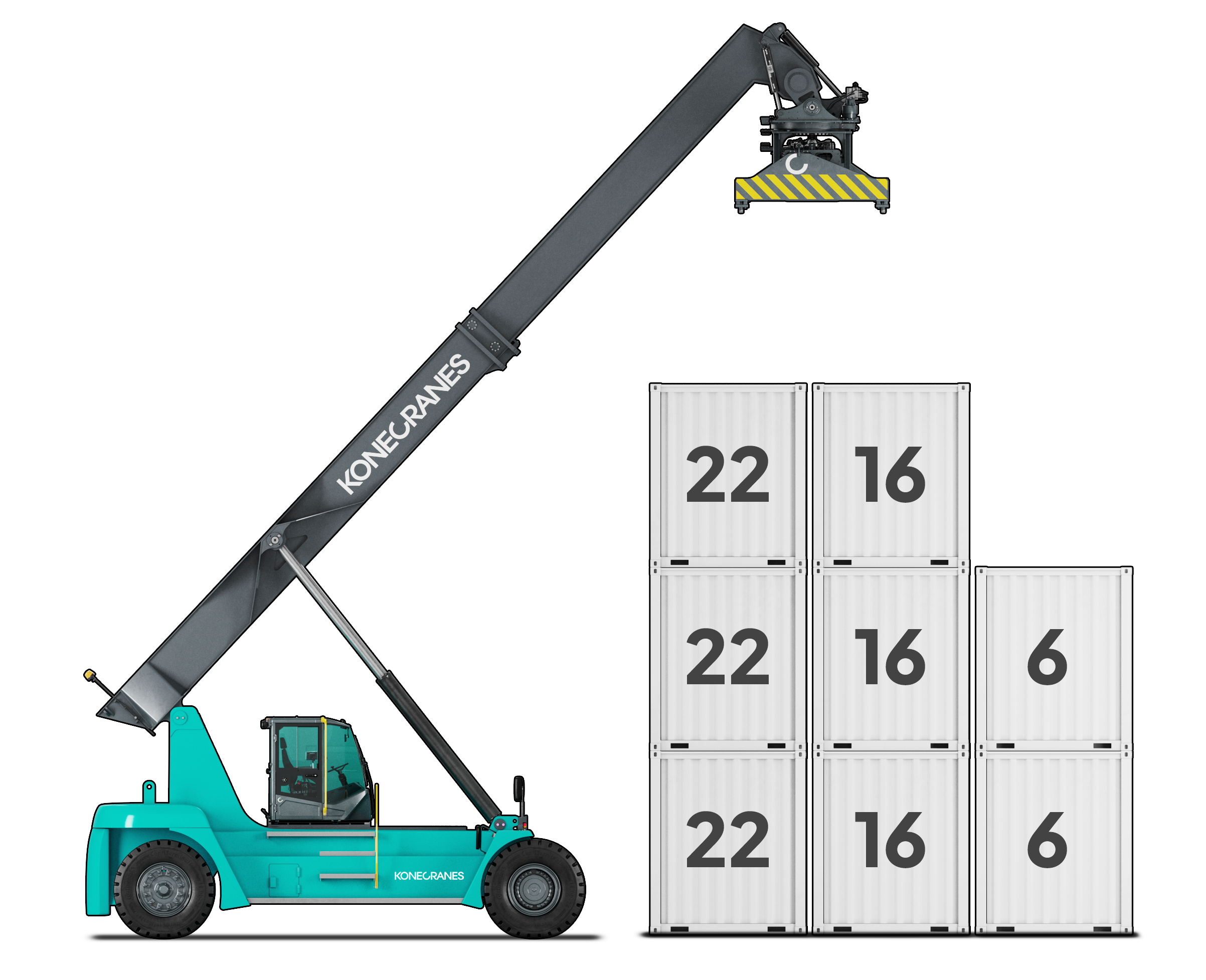

SMV 2216 TC3 22-16-6 t 5,500 mm
SMV 2518 TC3 25-18-8 t 5,500 mm

Model Capacity Wheelbase
SMV4228 TC5 (TC6)* 42-28-14t 6,400 mm

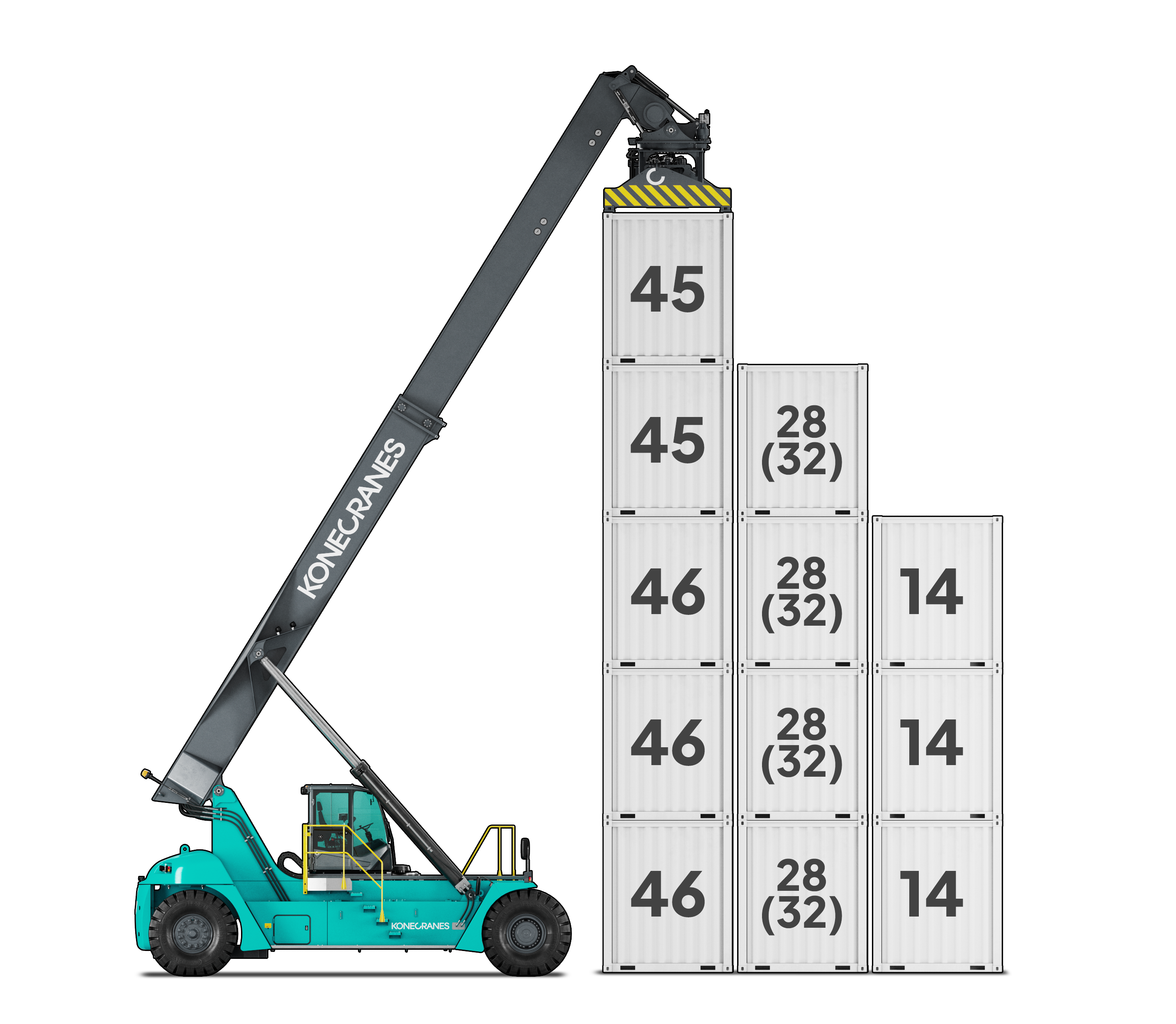

SMV 4628 TC5 (TC6)* 45-28-14t 6,400 mm

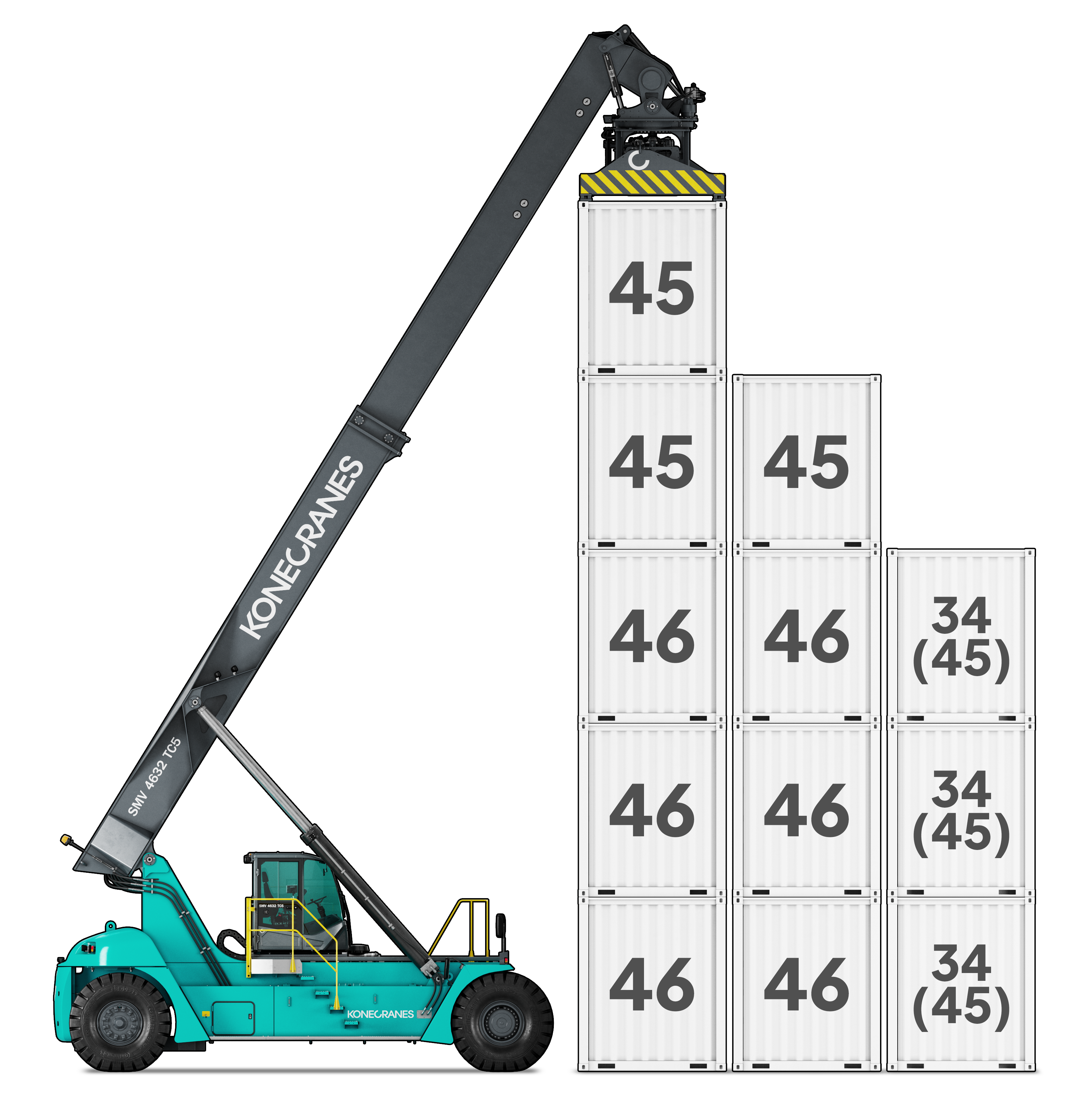

SMV 4632 TC5 (TC6)* 45-32-17t 6,400 mm
SMV 4632 TC6H (6x9'6'') 45-32-17-9t 6,400 mm

Model Capacity Wheelbase

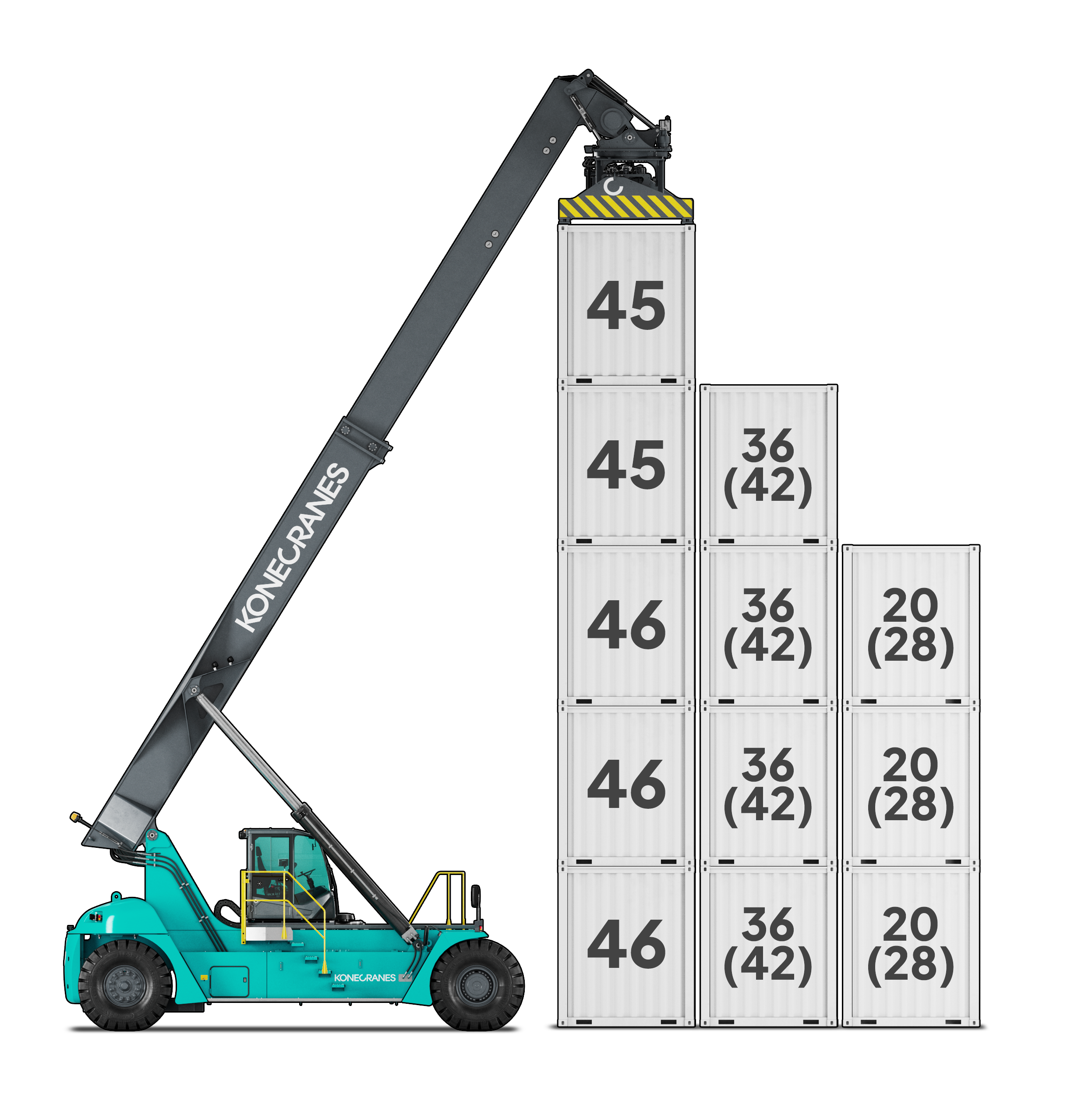

SMV 4636 TC5 (TC6)* 46-36-20t 6,400 mm
SMV 4636 TCX5** 46-48-25t 6,400 mm
SMV 4638 TC5 46-38-20t 6,400 mm
SMV 4638 TCX5** 46-42-28t 6,400 mm

Model Capacity Wheelbase
SMV 4643 TC5 46-43-25t 7,250 mm
SMV 4643 TCX5** 46-45-31t 7,250 mm
SMV 4644 TC5 46-44-26t 7,500 mm
SMV 4644 TCX5** 46-45-35t 7,500 mm

Model Capacity Wheelbase
SMV 4646 TC5 46-46-38t 8,000 mm
SMV 4646 TCX5 46-46-45t 8,000 mm

*TC5= 5 high, TC6= 6 high - **TCX=Capacity with support jacks engaged

**Front jacks down - Other models upon request
Running on HVO100

As a first step in your decarbonization journey, all our latest Generation C Konecranes lift trucks can run on HVO100, a fossil-free chemical copy of regular diesel, that can reduce fossil-based CO2 emissions by up to 90% already.
Discover more
Spreader options for container RS_image

Special handling needs

We have the right attachment.

You’ll find your lifting solution in our complete range of attachments for container handling reach stackers, to fulfill your daily handling needs.

Contact us to get your offer
